Copy Scenario for Subsidiary Integration in SAP Integration Framework 2.0 for SAP S/4 HANA in Integration Hub
Note
You must copy the sample integration content from the sample OE.HUB-namespace to the customer’s Z-namespace.
- To start SAP Integration Framework 2.0, choose Start → All Programs → Integration Hub → Integration Hub
- To log on, in the B1i Administrative Login user interface, enter the user name and password.
- Click on Integration Framework 2.0

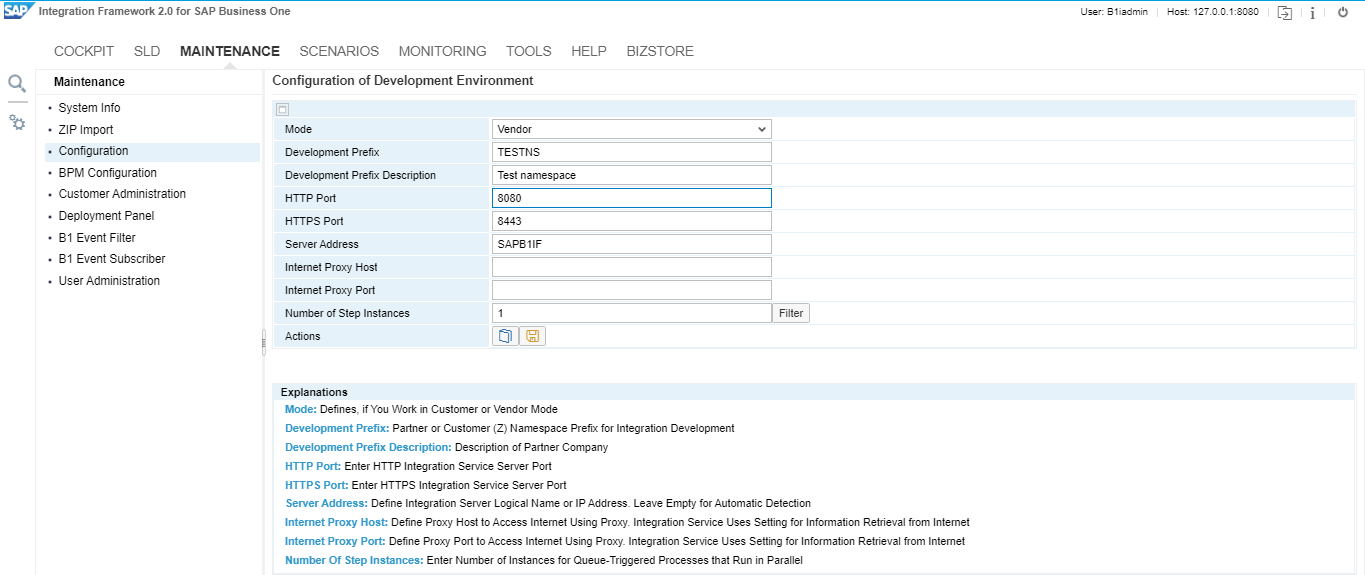

- Go to Maintenance and then Configuration.
- Select the Mode as “Vendor”.
- Provide the Development Prefix and Development Prefix Description.
- Save the entries.
- Go to Scenarios and Right click on Packages and select the Open Package.
- Select the OE.HUB.SusidiaryIntegration.
- Expend the Packages and right click on OE.HUB.SubsidiaryIntegration scenario package.

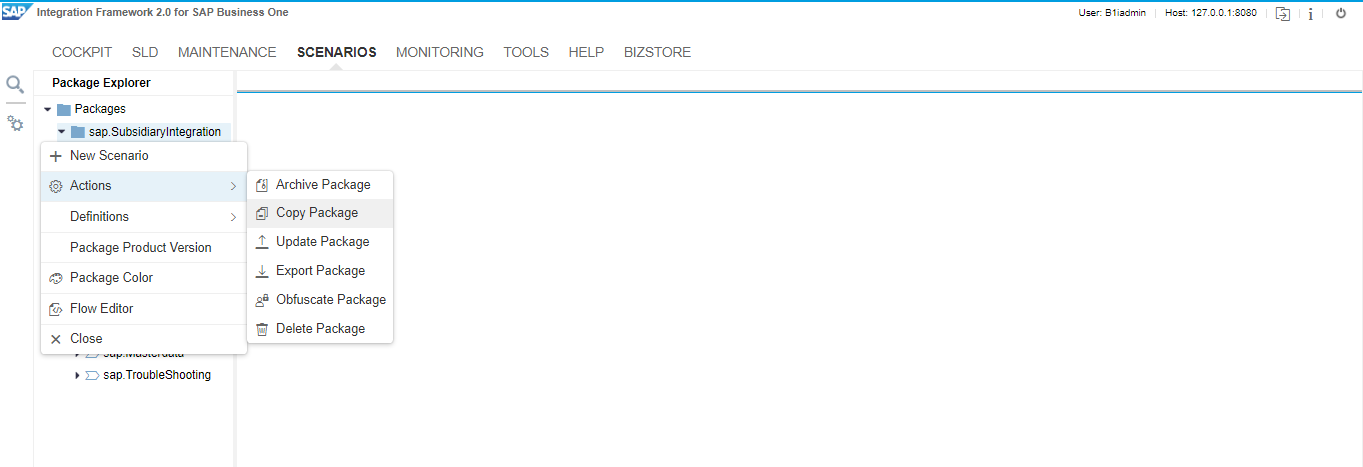

- Go to Actions and then select the Copy Package.
- Click on Copy Scenario Package button and confirm the message.
- Scenario packages copied successfully.
- Go to Scenarios and right click on Packages and select the Open Package.
- Select the TESTNS.HUB.SusidiaryIntegration.

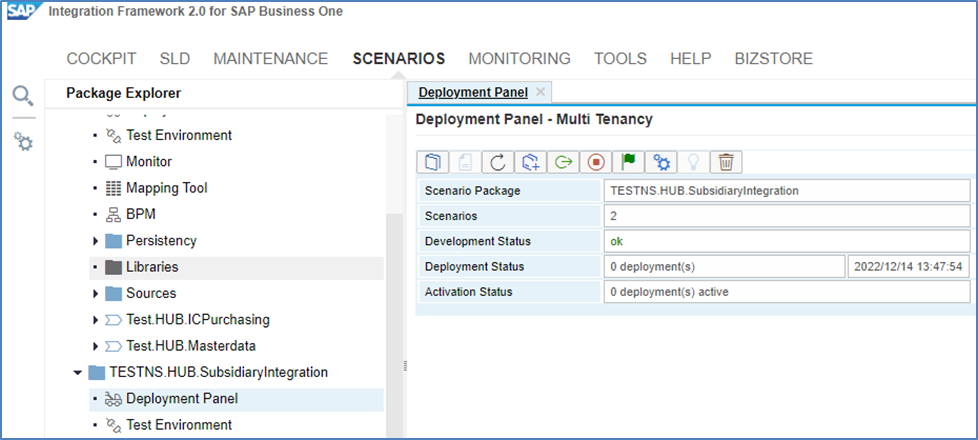

- Expand the Packages and select the Deployment Panel.
17. Click on Add Deployment button for adding the new deployment. On the Add Deployment button, provide the deployment name and select the company name.18. On pressing the expand button, all scenarios available in the integration appear.
|
Field Name |
Description |
|
Scenario Package |
Displays the Scenario Package created in Integration Framework. |
|
Scenario |
Displays the No. of Scenarios for that Scenario package. |
|
Development Status |
Shows the development status. |
|
Deployment Status |
Shows the deployment status. |
|
Activation Status |
Shows the Activation status. |
For information on setting up the S/4 HANA integration with SAP Business One, refer the Setting Up the System Landscape for SAP S/4 HANA Knowledge article.
Next Step:
