Setup in SAP Business One for DHL in the Integration Hub

Setup in SAP Business One for DHL in the Integration Hub

  1. In the SAP Business One Main Menu, choose Administration → Integration Hub → Application Deployment Status. The Deployment Status field should display 'Active', indicating that the feature is deployed in the Integration Hub. If the status displays 'Inactive', then redeploy the feature in the Integration Hub.

    For more details, refer the Application Deployment Status section in this guide.

Note

You must Re-start the SAP Business One client after Magento deployment from the Integration HUB. On login, the Add-On script will execute and relevant setup window appears.

  1. In SAP Business One, choose Main Menu → Administration → Integration Hub → B1i Server Details to enter the B1i Server details. This window enables to enter the B1i Server Details.

The B1i Server Details window contains the following fields:

Field Name

Description

B1i Server Address

Enter the server name or IP address of B1i server.

B1i Port

Enter the port of B1i Server. The default port for HTTP is 8080

Username

B1i run time user

Password

Enter the password for B1i run time user.

HTTPS

Select the checkbox to enable the solution to use HTTPS.

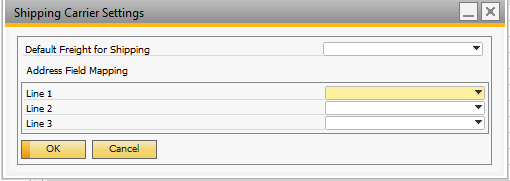

  1. In SAP Business One, choose Main Menu → Administration → Integration Hub→ Shipping Carrier Settings to configure the shipping carrier settings for DHL.


Note

You must define the ISO Currency code for base and all other currencies defined in database.
4.      The Shipping Carrier Settings are mandatory settings for integrating with SAP Business One.

The Shipping Carrier Settings window contains the following mandatory fields:

Field Name

Description

Default Freight for Shipping

For shipping amounts, the application uses default freight defined in shipping carrier settings which is picked from SAP.

Address Field Mapping – Line 1

Select the address line 1 item from the list of address line items.

The following is list of optional address line items:

  1. Address Name 1
  2. Address Name 2
  3. Street/ PO Box
  4. Block
  5. Street No.
  6. Building/Floor/Room

Address Field Mapping – Line 2

Select the address line 2 item from the list of address line items.

The following is list of optional address line items:

  1. Address Name 1
  2. Address Name 2
  3. Street/ PO Box
  4. Block
  5. Street No.
  6. Building/Floor/Room

Address Field Mapping – Line 3

Select the address line 3 item from the list of address line items.

The following is list of optional address line items:

  1. Address Name 1
  2. Address Name 2
  3. Street/ PO Box
  4. Block
  5. Street No.
  6. Building/Floor/Room


Next Step: Address Validation in DHL in the Integration Hub
