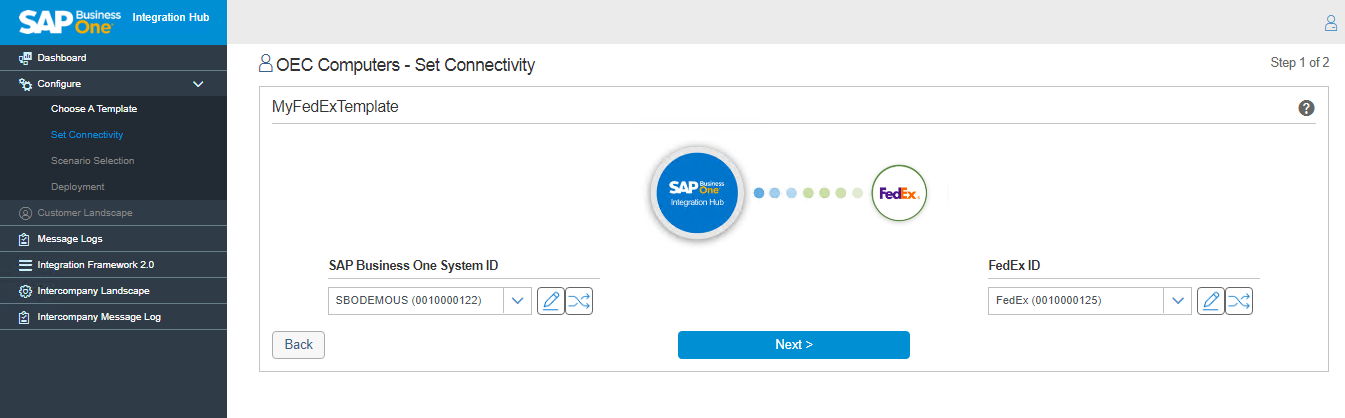

1. Choose the SAP Business One SLD to provide the connection between SAP Business One System Id and FedEx Id.


Note

By default, the solution displays all the SAP Business One SLDs available in SLD Category selected during customer creation.



2. To add a new SLD or edit existing SAP Business One SLD under SAP Business One  System Id area, choose Add / Edit button.

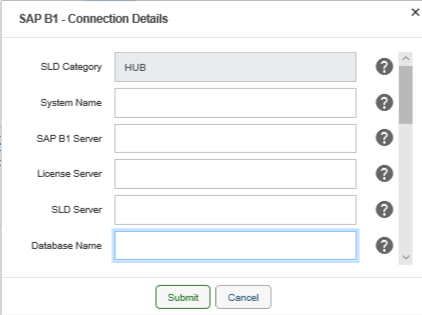

 The SAP Business One Connection Details window contains the following fields:

Field Name	Description
SLD Category	Displays the SLD Category selected during customer creation. This field is read only.
System Name	Enter the name of the system. Note System Name is the mandatory field to add or update SAP Business One SLD.
SAP Business One Server	Enter SAP Business One Server Name / IP Address. Note SAP Business One Server  is the mandatory field to add/update SLD information for SAP Business One.
License Server	Enter License Server details. i.e. Server Name or IP Address and port number of the SAP Business One License Server. The default port is 30000.
SLD Server	Enter the valid SLD Server details with port. Note SLD Server details is the mandatory field to add/update SLD information for SAP Business One.
Database Name	Enter the name of the SAP Business One Database. Database Name is the mandatory field to add/update SAP Business One System SLD. Caution The Database Name must be entered same as SAP Business One Database Name.
Database Type	Currently, only Microsoft SQL Server 2005, 2008, 2012, 2014, 2016, 2017 and SAP Hana DB are supported. Choose the database type from the dropdown list. Note Database Type is the mandatory field to add/update SAP Business One SLD.
Database User	Enter the user to access the company database using the database connection. Database User is the mandatory field to add/update SAP Business One SLD. Caution The Database User must be valid. Invalid Database User will result in failure to establish the connection.
Database Password	Enter a valid password for database login.  Note Database Password is the mandatory field to add/update SAP Business One SLD. Caution The Database Password must be valid. Invalid Database Password will result in failure to establish the connection.
Database Port	Enter the port for database.
Username	Enter B1i in this field. Note Username is the mandatory field to add/update SAP Business One SLD. It is set as B1i by default and un editable. Caution Ensure that a user with this name exists in the SAP Business One database.
Password	Enter a valid password for B1i user of SAP Business One.
Language	Select the language from the list of languages.
Is Trust	Select True or False. The default value for this field is False. To use a trusted connection, choose True from the dropdown list.
jcoPath	Enter path for jco library. Example of Installation path of JCO: C:\Program Files (x86)\SAP\SAP Business One DI API\JCO\LIB
DI ProxyHost	The DI Proxy host must be defined if B1i is installed on a separate server (this is, other than the SAP Business One server).  The value in this field must be same as SAP Business One Server address. Example Proxyhost can be same as SAP Business One Server.
DI ProxyPort	The default value of DI Proxy Port is 2099.
Proxy Host	The proxy host is defined in a multi-instance scenario. If the B1i server connects to the SAP Business One server through a proxy server then, enter the address of the proxy server in this field.
Proxy Port	Enter the proxy port in this field.

3. Enter the valid data and choose the Submit button. An SAP Business One SLD is created.


Choose the Test Connection  icon to test the connection between the SAP Business One System Id in Integration Hub and the SAP Business One System Landscape Directory.

If the connection is successful, a success message appears “Test Connection Successful”. If the connection is unsuccessful, a failure message appears “Test Connection Failed”. Please provide the correct credentials.

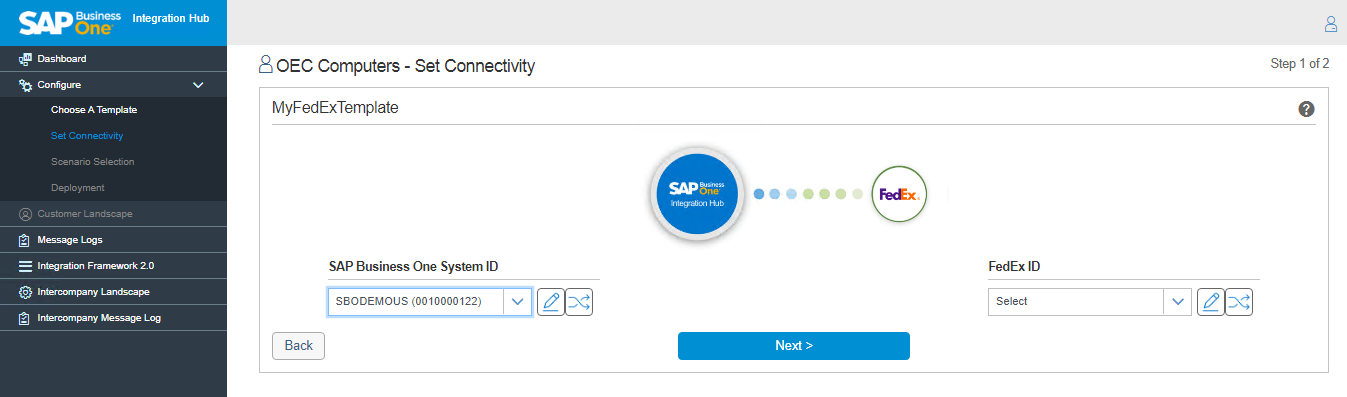

4. To add / edit FedEx instance SLD under FedEx Id area, choose the  Add / Edit button.


FedEx Connection Details window appears.

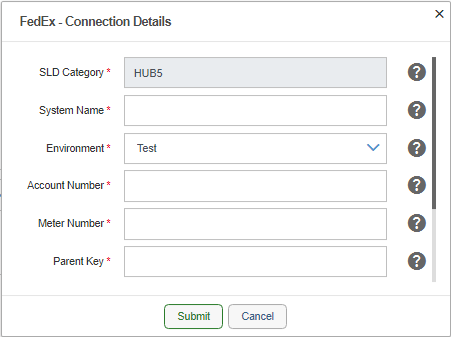

The FedEx Connection Details window contains the following fields:

Field Name	Description
SLD Category	Displays the SLD Category selected during customer creation. This field is read only.
System Name	Enter the name of the system. System Name is the mandatory field to add or update FedEx SLD.
Environment	Select the environment from the dropdown – Test or Production.
Account Number	Enter the FedEx Account number provided by FedEx
Meter Number	Enter the Meter Number provided by FedEx
Parent Key	Enter the Parent key provided by FedEx. If parent key is not available, then enter the User Key in this field.
Parent Password	Enter the parent password provided by FedEx. If parent password is not available, then enter the User Password in this field.
User Key	Enter the User Key provided by FedEx
User Password	Enter the user password provided by FedEx

5. Provide the valid information in the fields and choose the Submit button. SLD for FedEx is created.




6. Choose the Test Connection  icon to test the connection between the Integration Hub and FedEx.


If the connection is successful, a success message appears “Test Connection Successful”.

If the connection is unsuccessful, a failure message appears “Test Connection Failed”.

7. Choose the Next button to proceed to Step2.


      Configuration Summary

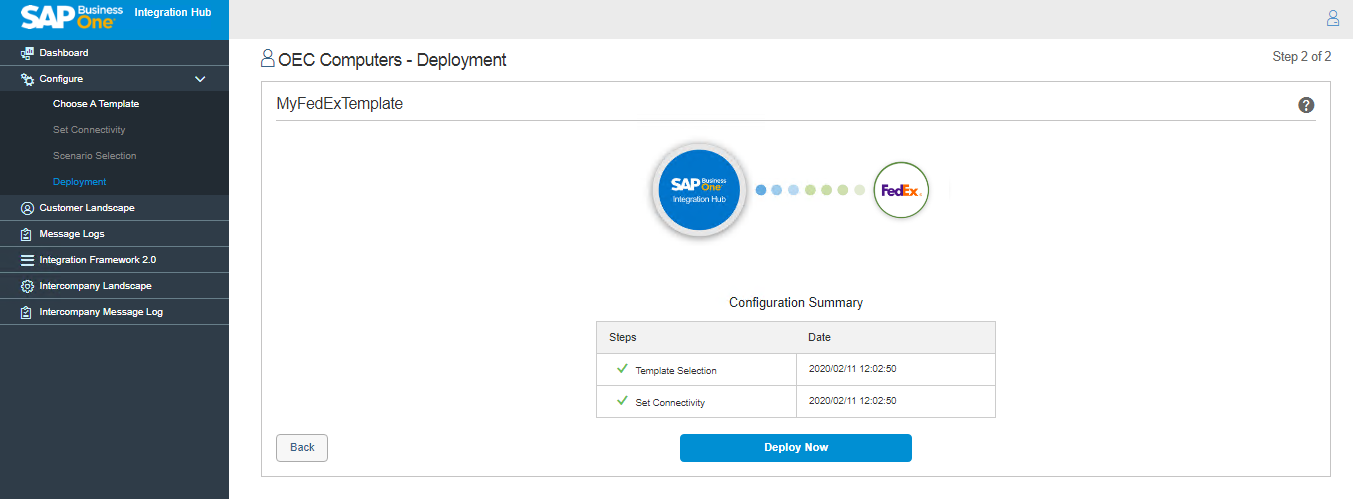

8. The Configuration summary displays the Date and time for Template Selection and Set Connectivity steps.




Next Step: Step 2 – Deployment of Fedex in the Integration Hub
