WDF 2520028 - The solution does not display the information in the Cockpit

Symptom

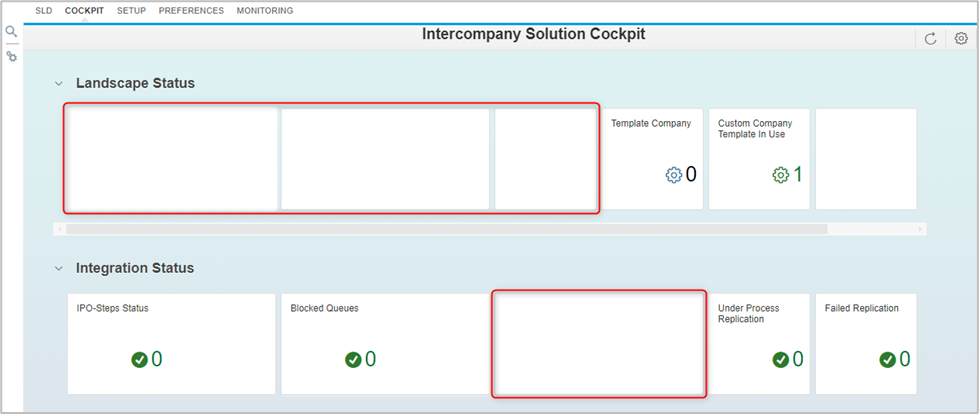

The solution does not display the information in the tiles within the Intercompany Solution Cockpit.



Reproducing the issue

Prerequisites:

You are using Intercompany Integration Solution version 52.

Scenario:

The solution does not display the information in the tiles within the Intercompany Solution Cockpit. Follow the steps to reproduce the issue:

1. Go to Intercompany Administration Console.

2. Navigate to the Cockpit menu.

Expected behavior:

The solution displays accurate and up-to-date information in the Cockpit.

Actual behavior:

The solution does not display the information in the Cockpit.

Workaround:

Attached zip files (count 1) are to be imported via BizStore Import of Control Center.

1. From your existing environment take the backup of "com.cxs.b1i.ipo". To take the backup of the ipo file, perform the following steps:

1. Login into Integration Framework 2.0.
2. Goto Tools -->Control Center --> Maintenance -->BizStore Export.
3. In the Exporting Content from BizStore, In the selection critera. Select the Dataset button.
4. In the Choose Dataset, Choose Value "com.cxs.b1i.ipo" and then press Submit button.
5. Save the file in the relevant folder.

2. Perform the following steps to import the IPO file:

1. Login into Integration Framework 2.0.
2. Goto Control Center --> Maintenance -->BizStore Import.
3. In the Importing Content to BizStore, In the Selection Critera. In the Choose Archive, select the Choose File button.
4. Select the IPO file "com.cxs.b1i.ipo.zip".
5. Select the checkbox Assume File System-Friendly Naming and then Submit.

Solution

The enhancement described above has been incorporated in the Intercompany Integration Solutions version 53 and higher versions.

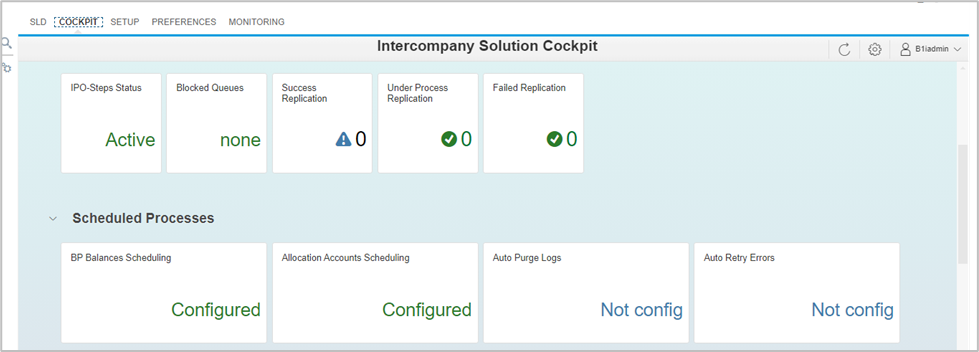

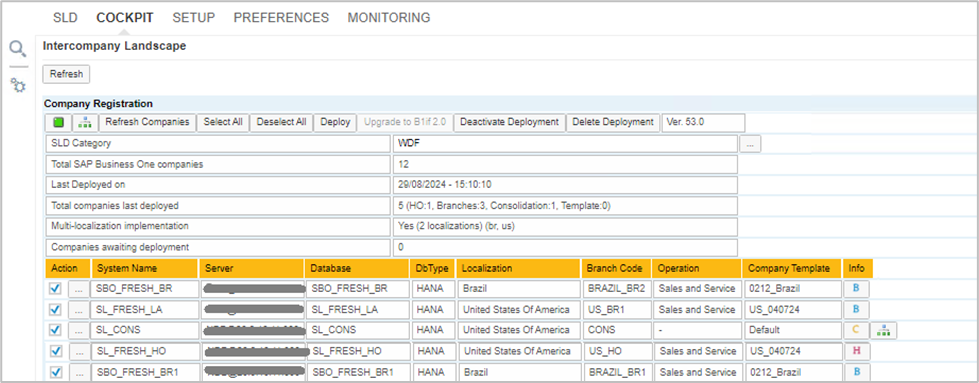

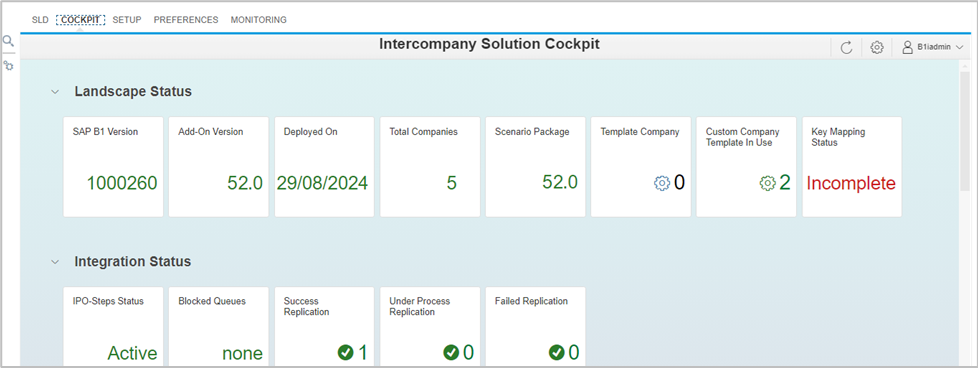

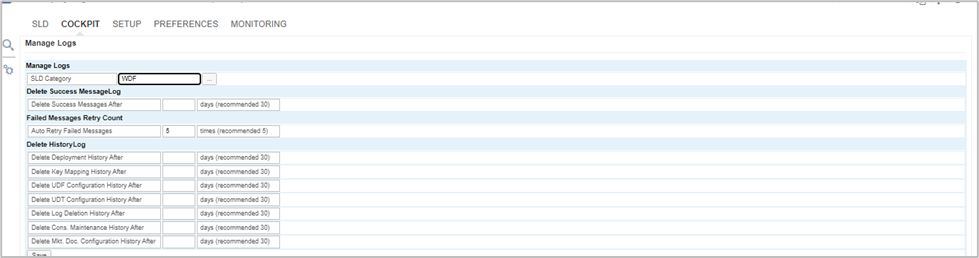

After fixing the issue, the sample screenshots of the Intercompany Solution Cockpit are given for reference:

Product

Product or Product Version

B1 INTERCOMPANY INTEGRATION

SAP B1 10.0 FOR SAP HANA

SAP B1 9.3 FOR SAP HANA

SAP BUSINESS ONE 10.0

SAP BUSINESS ONE 9.3

This document refers to :

WDF 2530001 - Overview Note for Intercompany integration solution Version 53 for SAP Business One
