Setting up SAP S/4 HANA in Integration Hub
This section gives you an overview of systems you can use in the SAP Integration Framework 2.0 system landscape and provides you with information about how to technically connect the systems with each other.
The system landscape setup tasks depend on which integration scenarios you want to use.
In each subsidiary, you are running SAP Business One.
In the headquarters, you are running SAP S/4 HANA or SAP ECC.

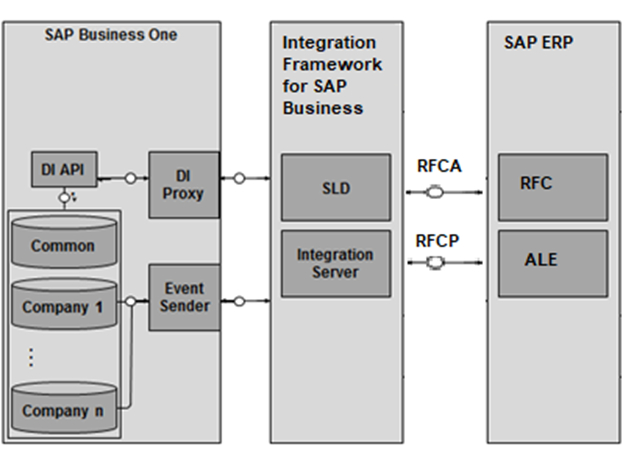

SAP Integration Framework 2.0 acts as a bridge between the headquarters and the subsidiaries. SAP Integration Framework 2.0 uses the DI API through the DI Proxy component to communicate with SAP Business One in the subsidiary. SAP Business One Event Sender collects data change events in SAP Business One and transfers them to SAP Integration Framework 2.0. SAP Integration Framework 2.0 uses RFC to connect to SAP S/4 HANA and SAP ECC in the headquarters.
The following table gives you an overview of the available integration scenarios, the required system landscape you must setup, which component triggers the scenario, and the technical connections the systems use:
Integration Scenarios, Systems and Technical Connections
|
Integration Scenario |
SAP Integration Framework 2.0 |
SAP Business One Communication Components |
SAP S/4 HANA or SAP ECC
|
|
Master Data Distribution Product Master Data Distribution Customer SAP S/4 HANA or SAP ECC -triggered |
Receiver SAP Business One Sender SAP S/4 HANA or SAP ECC |
SAP Business One DI Proxy |
SAP S/4 HANA or SAP ECC with ALE, RFC, BAPI |
|
Intercompany Purchasing Sales from Central Stock Sales from Local Stock SAP Business One event-triggered |
Receiver SAP Business One, SAP S/4 HANA, SAP ECC Sender SAP Business One, SAP S/4 HANA, SAP ECC |
SAP Business One DI Proxy SAP Business One Event Sender |
SAP S/4 HANA or SAP ECC with ALE, RFC, BAPI |
To Import the package provided by walldorf solutions, perform the following steps.
- Login into Integration Framework 2.0 and navigate to Maintenance->ZIP Import.
- Choose Archive and select the file path for zip file import.
- Click on Submit button. Caution messages will appear. Click on the OK button.
- Integration framework shows the Import Status.

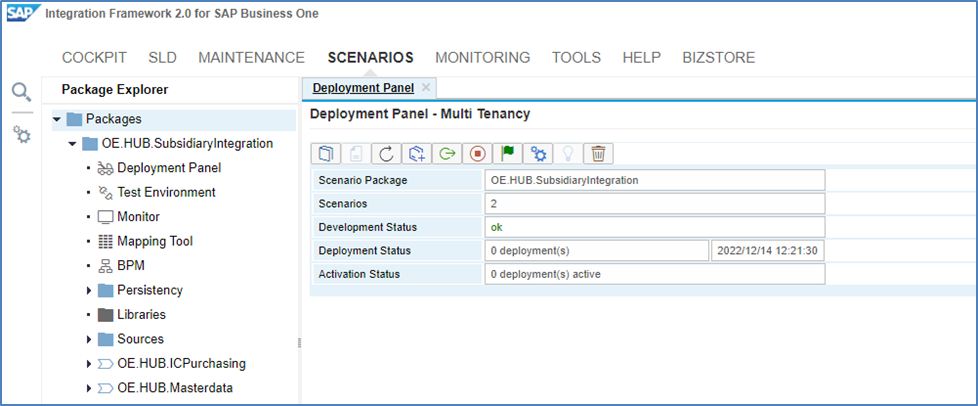

- Afterward go to Scenarios, right click on the Packages, and choose Open Package.
- Select Package as OE.HUB.SubsidiaryIntegration and choose Open.
