WDF 2550039 – Unable to auto map key mapping objects for Discount Group

WDF 2550039 – Unable to auto map key mapping objects for Discount Group

Symptom

The Auto Map function does not work for the Discount Group in the Key Mapping screen of the Intercompany Administration Console.

Reproducing the issue
Prerequisites

You are using Intercompany Integration Solution version 55.0 or lower.

Scenario

Discount Group objects fail to auto-map in Key Mapping. The following are the steps to reproduce the issue:
1. Open the Key Mapping screen in the Intercompany Administration Console.
2. Select Discount Group as the object type.
3. Click the Auto Map button to automatically map the Discount Group records across companies.
4. Observe that no mapping is created, and the Auto Map action fails to generate keymap entries.

Expected Result

The Discount Group objects are auto-mapped successfully across the connected companies.

Actual Result

The Auto Map function does not map the Discount Group objects.

Workaround:
The attached zip file is to be imported via BizStore Import in Control Center.

1. From your existing environment, take a backup of the "com.cxs.b1i.ipo" file as per the backup process below:

To take the backup of the ipo file, perform the following steps:
  1. Log in to Integration Framework 2.0.
  2. Go to Tools -->Control Center --> Maintenance -->BizStore Export.
  3. In the Exporting Content from BizStore, in the selection criteria. Select the Dataset button.
  4. In the Choose Dataset, choose Value "com.cxs.b1i.ipo" and then press the Submit button.
  5. Save the file in the relevant folder.
2. Perform the following steps to import the IPO file:
  1. Log in to Integration Framework 2.0.
  2. Go to Control Center --> Maintenance -->BizStore Import.
  3. In the Importing Content to BizStore, In the Selection Criteria. In the Choose Archive, select the Choose File button.
  4. Select the IPO file "com.cxs.b1i.ipo.zip".
  5. Select the checkbox Assume File System-Friendly Naming and then Submit.
3. Log in to Intercompany Administration Console, navigate to the Landscape, and redeploy the IC solution.
4. Navigate to Preferences and select Delete Keymapping.
5. Delete the key mapping for the "Discount Group" object.
6. Go to Setup and navigate to keymapping and perform the keymapping for the Discount Group.

Solution

The logic for displaying key mapping values for the Discount Group has been enhanced. The solution now displays additional information — ObjType and ObjCode — in brackets to help identify the corresponding setup details more clearly.

Example: The object value S (2-11): 2 — here, the numbers inside the brackets represent the information of the discount group, 2 denotes the ObjType, and 11 denotes the ObjCode.

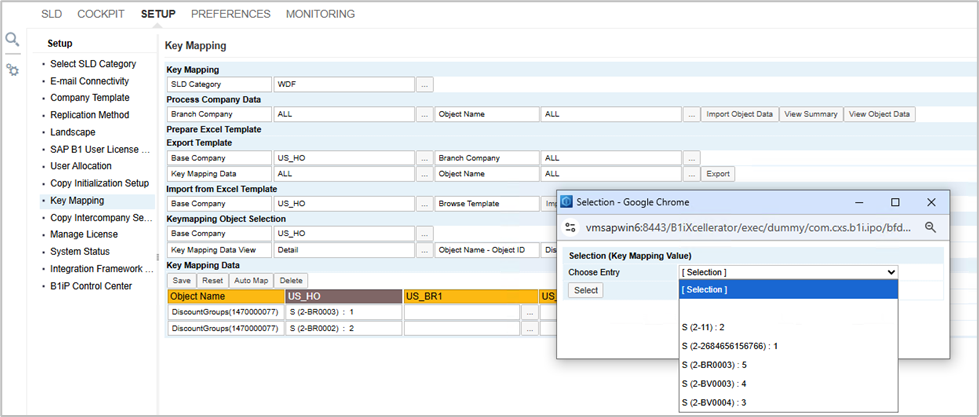

The sample screenshot is given below:



The enhancement/issue described above will be incorporated in Intercompany Integration Solutions version 56 and higher versions.

Product
Product or Product Version
B1 INTERCOMPANY INTEGRATION
SAP B1 10.0 FOR SAP HANA
SAP B1 9.3 FOR SAP HANA
SAP BUSINESS ONE 10.0
SAP BUSINESS ONE 9.3
