Step 2 – Deployment of UPS in the Integration Hub

Step 2 – Deployment of UPS in the Integration Hub

  1. To deploy the solution, choose the Deploy Now button.
  2. The application prompts you to provide the license details. For more information, refer to the Assigning the Integration Hub licenses knowledge article.

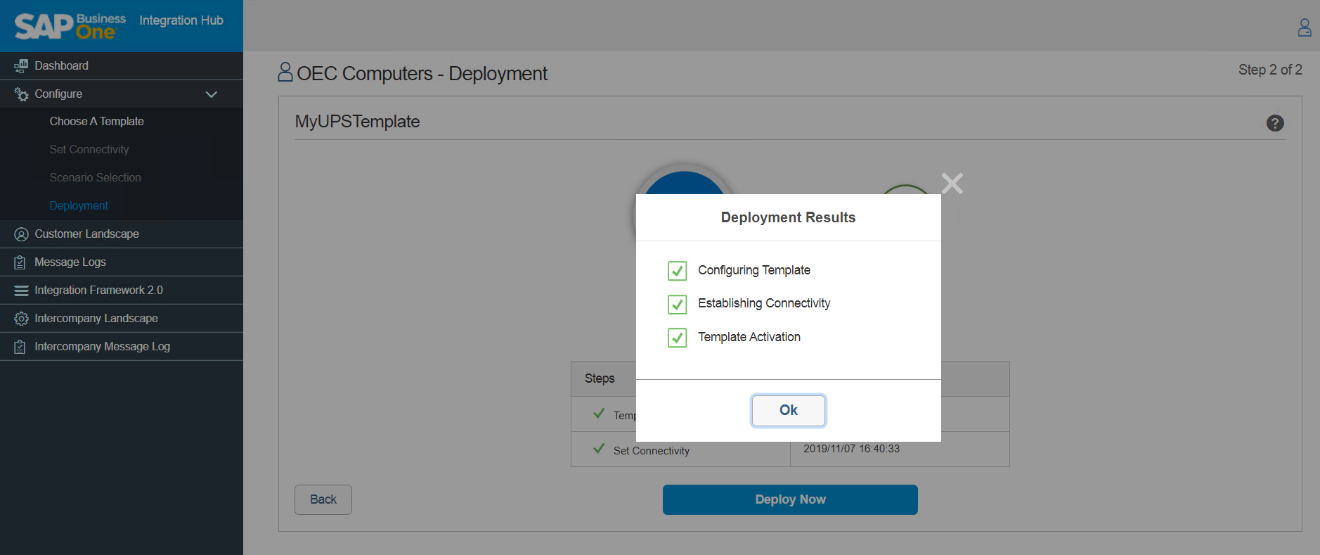

  3. The Integration Hub displays the Deployment Results whether the deployment is successful or failed. The checkbox in the Deployment Results window displays status of each deployment stage.

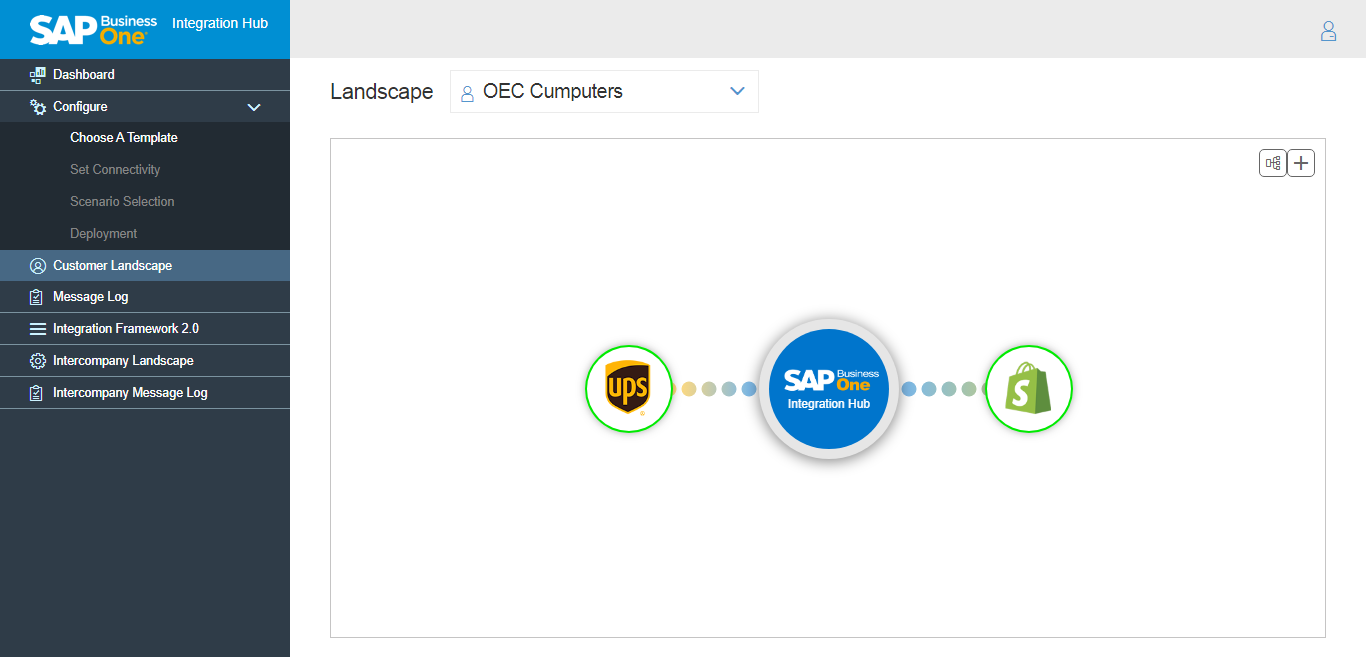

  1. Once all stages are checked, click the OK button on the Deployment Results window to proceed. The successful deployment of solution in Integration Hub results in enabling the features in SAP Business One. Customer Landscape displays connection of SAP Business One to UPS.


  1. To modify the template after successful feature activation, right-click on the logo of the template.
  2. Right click on the UPS logo. It will display following fields:

Field Name

Description

View

Displays the Set Connectivity window in view mode.

Edit

Displays the Set Connectivity window in Edit mode.

De-activate

Deactivates the UPS deployment.

Deployment Status

Displays the deployment status with date and time.

Delete

Choose delete to delete the template. It is an Irreversible action.

Note

On deleting the template, the template will be marked as Inactive in the application deployment status window in SAP Business One.

Manage Licenses

Choose Manage License to Activate/Deactivate the integration Hub License. For more information, see Managing the Integration Hub licenses knowledge article.


Next Step: Setup in SAP Business One for UPS in the Integration Hub
