Setting Up the Intercompany Integration Solution in the Integration Hub

Setting Up the Intercompany Integration Solution in the Integration Hub

To set up the intercompany integration solution in the Integration Hub Administration Console, perform the following:

  1. In the Integration Hub Administration Console, in the Dashboard menu, in the Customers area, choose the Add New Customer button. For more information, see Adding New Customers knowledge article

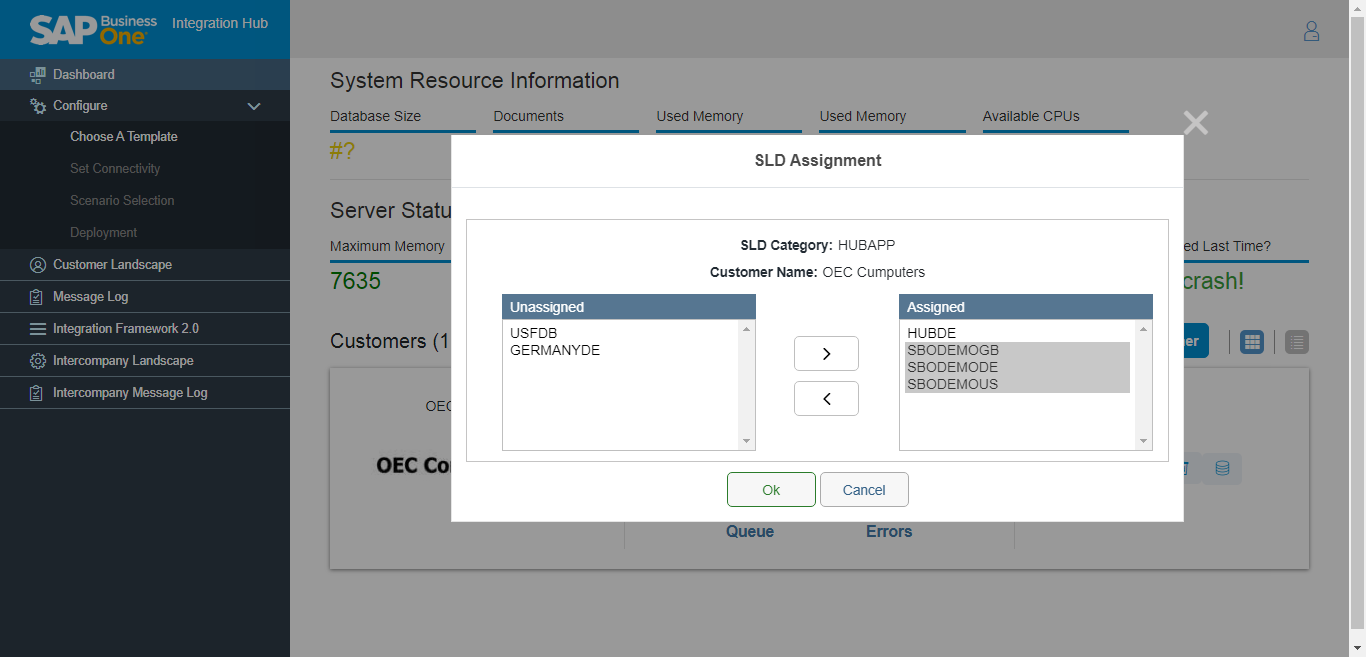

  2. Click the  (Assign SLD Category) icon.
  3. Select all SLDs to be configured in the intercompany integration solution.

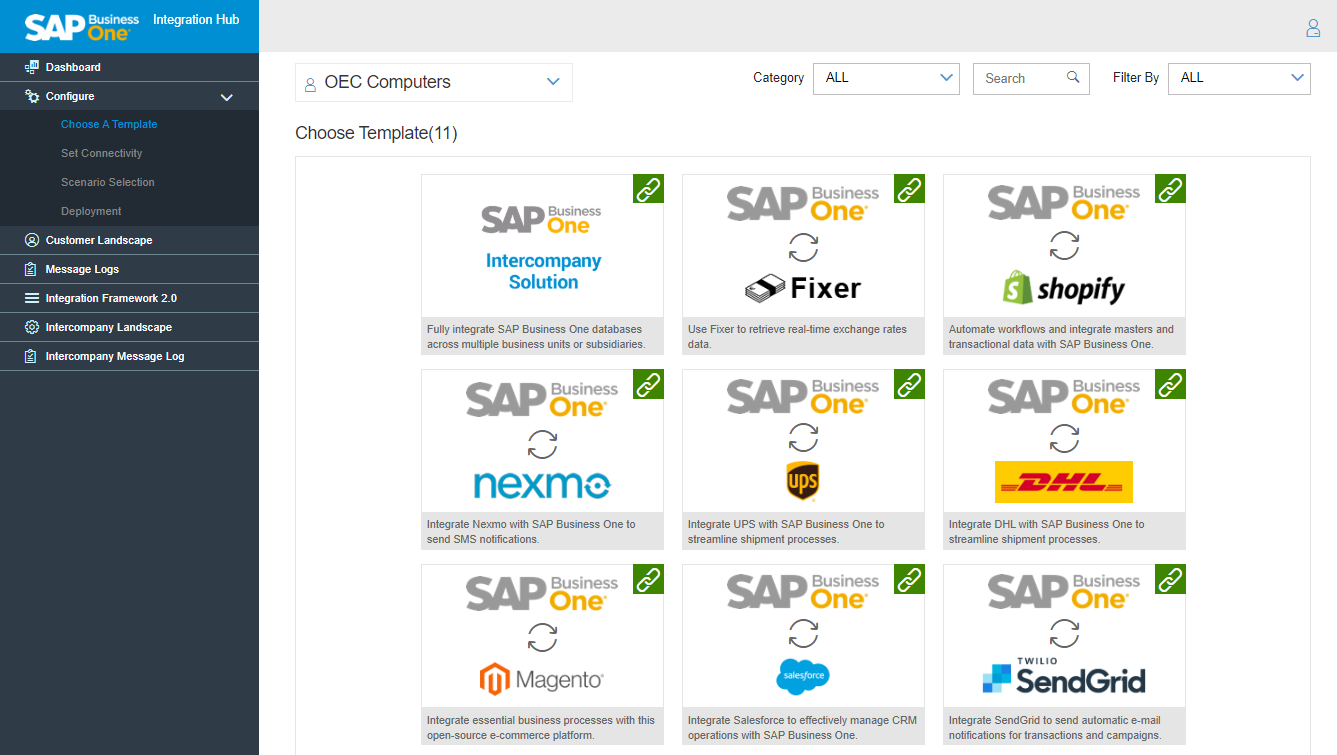

  1. In the Configure menu, choose the Choose a Template option.



  1. Select the Intercompany Solution template to integrate the intercompany integration solution with SAP Business One.



  1. The SLD page of Intercompany Administration Console opens.



For information on setting up and configuring the intercompany integration solution for SAP Business One, refer to the Setting up Intercompany Landscape Knowledge article.


                  Upgrading the Existing Intercompany Environment to the Integration Hub

To upgrade an existing intercompany integration solution environment to the Integration Hub, perform the following:

                  1. Install the Integration Solutions add-on. For more information, see Installing the Integration Solutions Add-On Knowledge article.
                  2. Perform steps 1-4 in Installing the Integration Solutions Installer.

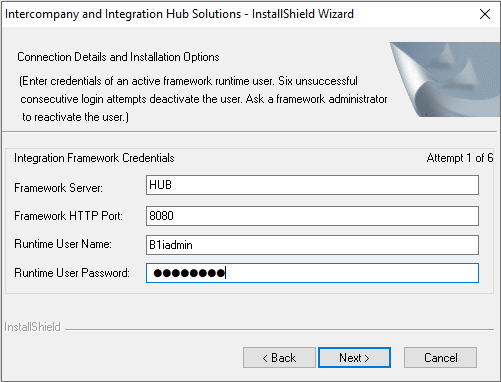

                  3. In the Connection Details and Installation Option window, enter the following information and choose the Next button.
  • Framework Server – The framework server name is prepopulated by default.
  • Framework HTTP Port – The default HTTP port for the framework server (8080) is prepopulated in this field.
  • Runtime User Name – The default runtime user name is B1iadmin.
  • Runtime User Password

    • Note

    Upgrade of the intercompany integration solution from B1iF version 1.0 to B1iF version 2.0 must be done manually. To do so, in the Intercompany Administration Console, choose the Setup option in the top menu bar. In the left frame, choose the Landscape option, and on the Intercompany Landscape page, choose the Upgrade to B1iF 2.0 button.


    4. To start the installation process, choose the Install button in the Ready to Install the Program window.
       5. Choose the Finish button.
       6. Log in to the Integration Hub Administration Console.
       7. In the Dashboard menu, in the Customers area, choose the Add New Customer button and enter all required data.

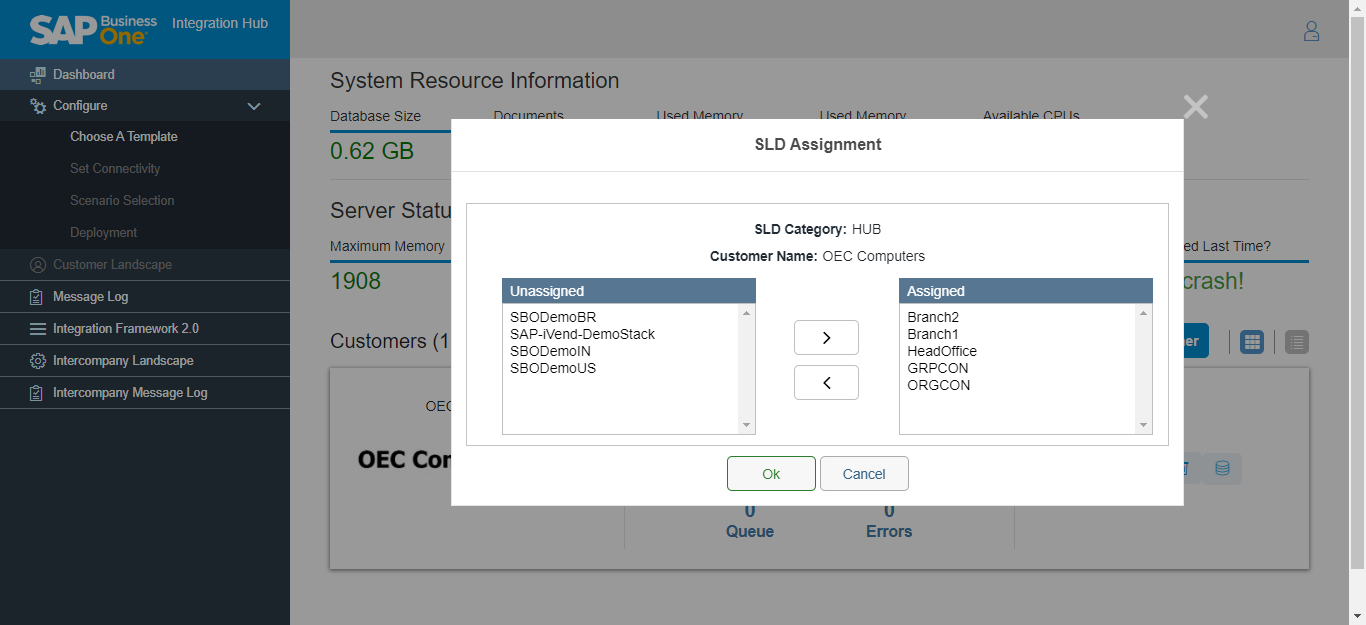

       8. Click the  (Assign SLD Category) icon and move all intercompany integration solution SLD’s to the category created for the customer.

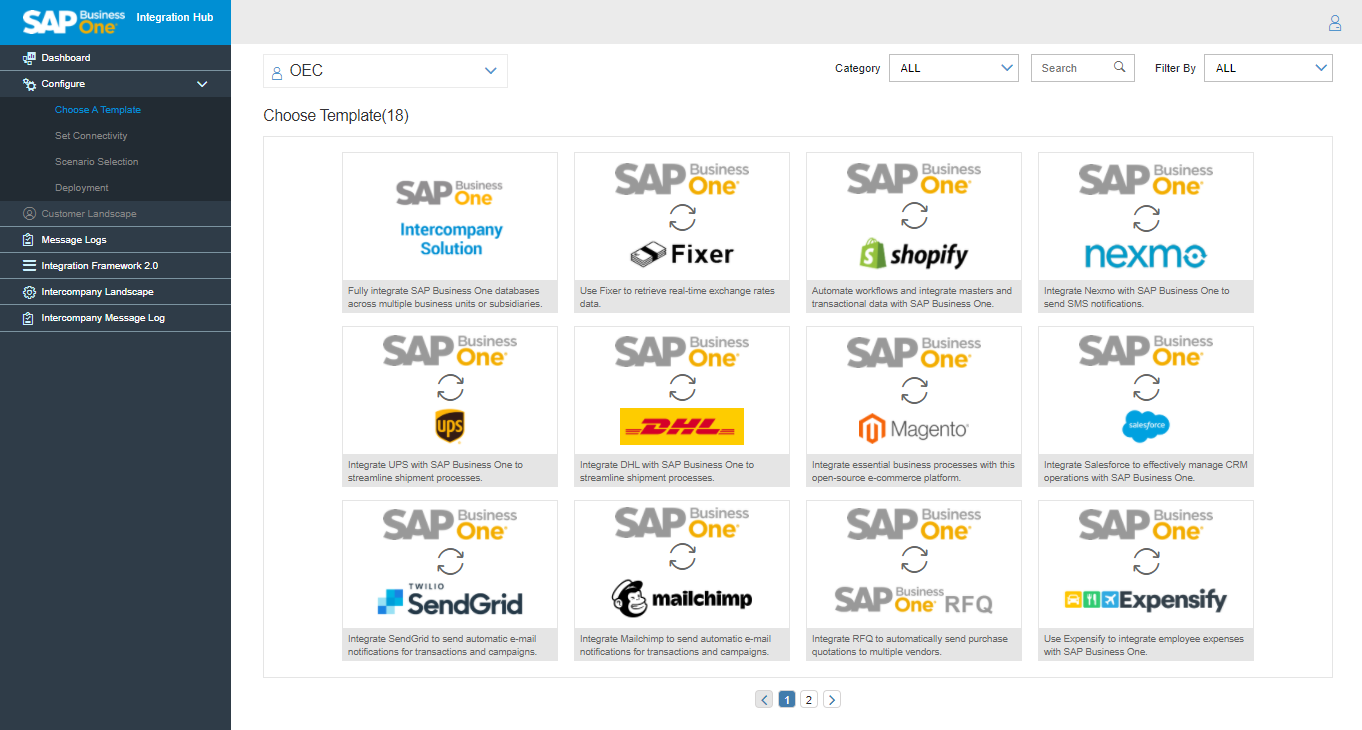

    9.  In the Configure menu, select the Choose a Template option.

                        10. Select the Intercompany Solution template.

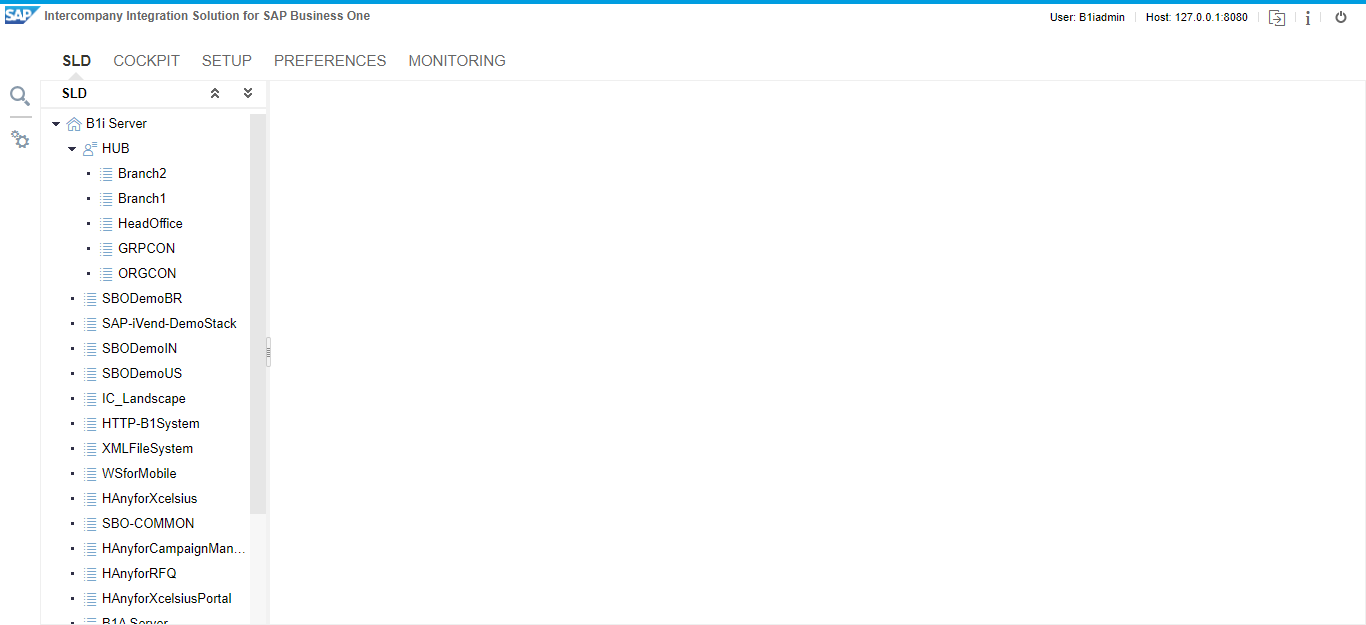

    The SLD page of the Administration Console for the intercompany integration solution opens.

                        11. In the Setup menu, choose Landscape.

    The Intercompany Landscape page appears.

                        12. In the SLD Category field, select the HUB Category that was created during customer creation.
                        13. If the intercompany integration solution is already upgraded to B1iF version 2.0, you can deploy the solution and Perform the currency key mapping.
                        14. If the Intercompany solution is running on B1iF version 1.x, you need to first upgrade the solution to B1iF version 2.0. For more information on upgrading to B1iF version 2.0, see the Upgrading the Intercompany Solution from B1iF1.x to B1iF 2.0

    Once the solution is upgraded and deployed, it will appear as a connected application in the Integration Hub.



    For information on using the intercompany integration solution for SAP Business One, see the Intercompany knowledge articles available on the Walldorf support portal.
